CLEAR ACRYLIC SHEET

Exceptional optical clarity with reliable durability.
High-transparency acrylic solutions for signage, display,
decoration, and industrial applications.

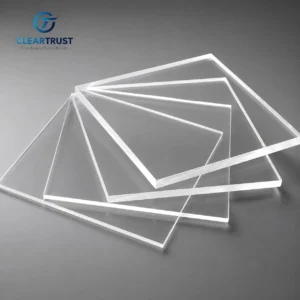

About Clear Acrylic Sheet

Clear Acrylic Sheet is a transparent thermoplastic material manufactured through cast or extruded processes.

It offers exceptional optical clarity, excellent weather resistance, high strength-to-weight ratio, and stable performance for both indoor and outdoor applications.

Compared with glass, acrylic is lighter, safer, and easier to fabricate while maintaining outstanding transparency and surface quality.

Key Features

Ultra High
Transparency

Light transmission up to 94%.

Excellent Weather Resistance

UV resistant and weather proof for outdoor applications

Strong Surface
Hardness

Scratch-resistant and durable surface.

Easy Fabrication

Ideal for CNC,laser cutting,thermoforming,printing,bending,and polishing.

Lightweight Alternative
to Glass

50% weight oftraditional
glass.

Stable Quality
Performance

100% Virgin raw material,thickness tolerance within ±0.2mm

TECHNICAL SPECIFICATIONS

General Specifications
Item	Specification
Material	100% New Virgin Raw Material
	Recycled Material (based on customers request)
Types	Cast / Extruded
Color	Clear /Frosted
Thickness	1 – 50 mm
Customization	Available (Size,Thickness, Color, Texture)
Standard Size	1000×2000 mm	1200×1800 mm
	1220×1830 mm	1250×1850 mm
	1220×2440 mm	1250×2460 mm
	1250×2500 mm	1270×2490 mm
	1500×3000 mm	1280×2500 mm
	2000×3000 mm	2050×3050 mm

Key Technical Properties
Property	Unit	Value
Density	g/cm³	1.2
Water Absorption	%	0.2 – 0.4
Light Transmittance	%	≥ 93
Refractive Index	—	1.49
Gloss (60°)	GU	≥ 90
Tensile Strength	MPa	65 – 75
Flexural Strength	MPa	≥ 90
Elastic Modulus	MPa	3000 – 3300
Impact Strength (Izod)	kJ/m²	12 – 16
Hardness	Shore D	85 – 90
Vicat Softening Temp	°C	105–110
Heat Deflection Temp	°C	90 – 100
Continuous Service Temp	°C	-40 – 80
Thermal Expansion Coefficient	mm/m·°C	0.06 – 0.08
Outdoor Durability	years	10+
